33 GHz, 4 Channels.

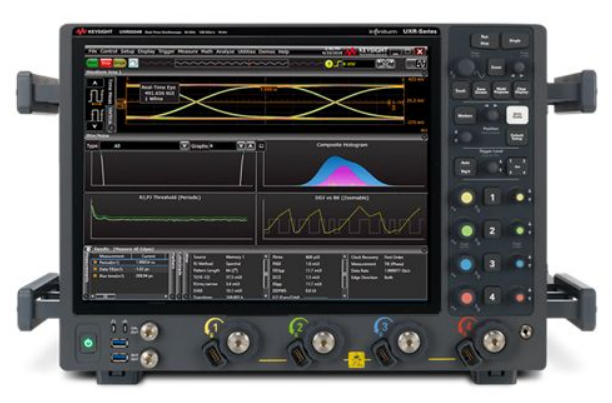

The UXR0334B is the 33 GHz, 4 channel, Infiniium UXR-Series real-time oscilloscope.

Highlights

• 33 GHz bandwidth and upgradable to 110 GHz of real-time oscilloscope bandwidth
• 500 Mpts of memory per channel included and upgradable to 2 Gpts of memory per channel
• 128 GSa/s sample rate on all channels
• 160 MHz DDC included and upgradable to 2.16 GHz DDC
• 160 MHz RTSA included and upgradable to 320 MHz RTSA
• Optional configurable mmWave extension bandwidth window up to 30 GHz
• High-definition 10-bit analog-to-digital converter (ADC)
• The industry’s lowest noise and jitter measurement floor
• The industry’s highest ENOB at all supported bandwidth
• Optional calibration module N2127A for on-site self-calibration
• High-speed SDA and Clock Recovery included
• User-defined functions included
• InfiniiSim Basic included to simply compensate for the channel loss with one block model
• PrecisionProbe/PrecisionCable included helping quickly characterize the probe or cable loss
What’s included
• Removable 960 GB enterprise grade SSD 2.5” hard drive
• One Torque-Wrench 8 lb-in, 5/16 inch
• Five connector savers, 3.5 mm Female-to-Female
• Ten connector saver collars
• Country-specific power cord
• Front cover
• USB keyboard
• USB optical mouse
• ESD mat with wrist and heel straps
• Calibration Certificate
